Product Description

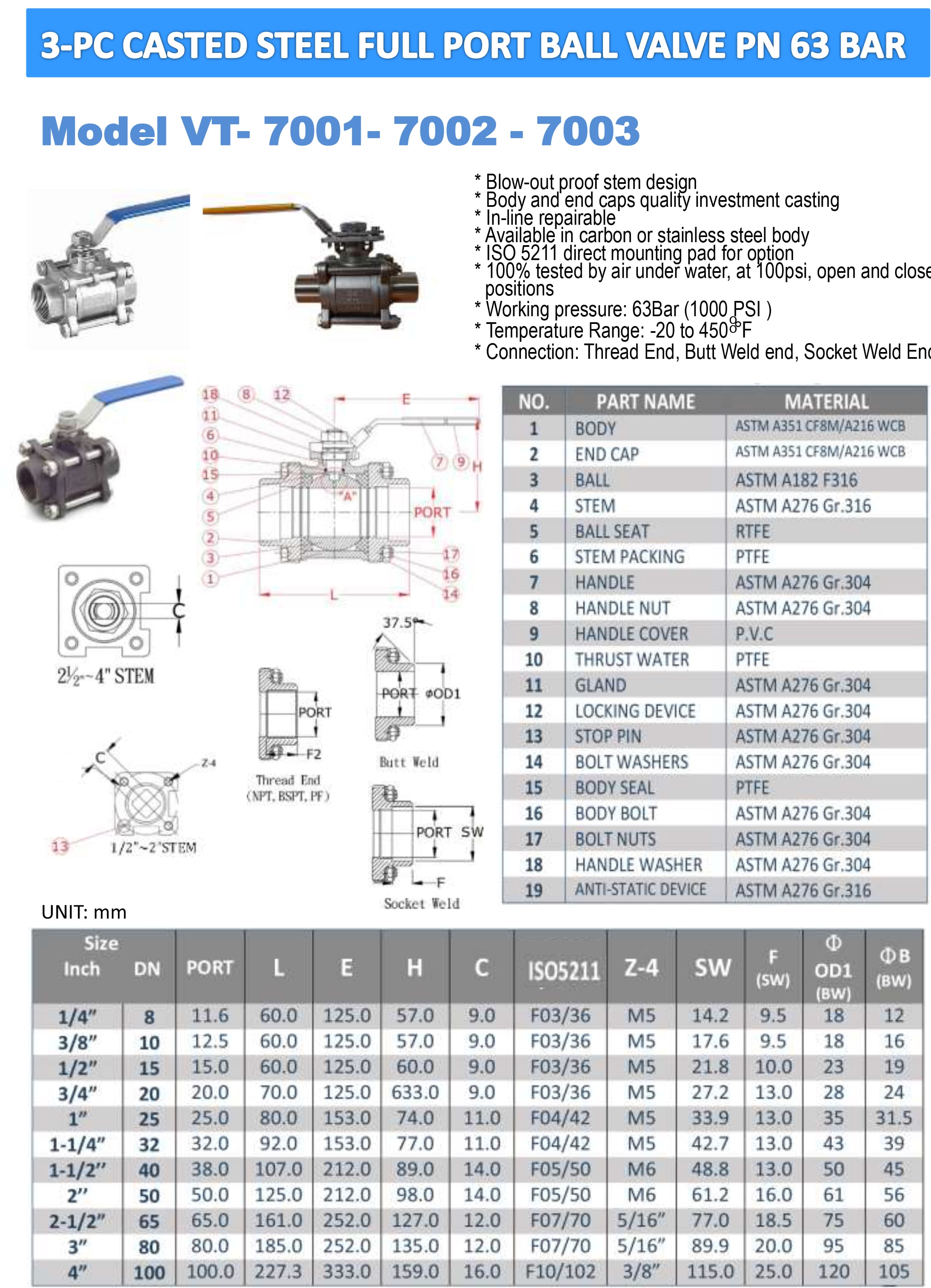

**Professional 3-Piece Full Port Ball Valve - Stainless Steel 316** Engineered to EN12266-1 standards, this premium 3-piece ball valve features full port design in corrosion-resistant stainless steel 1.4408/CF8M/316 material. Manufactured through precision dewaxing casting for superior durability and performance. **Technical Specifications:** - Pressure Rating: PN63 BAR (1000 WOG for DN8-DN50, 800 PSI for DN65-DN100) - Size Range: 1/4" to 4" (DN8-DN100) - Temperature Range: -20°C to 180°C - Face-to-Face: DIN 3202 S13 compliant - ISO 5211 mounting pad compatible **Key Features:** - Blow-out proof stem design for enhanced safety - Optional locking device mechanism - Multiple connection types: threaded, butt weld, and socket ends - Corrosion-resistant construction ideal for industrial applications - Precision-engineered for reliable, leak-free operation Suitable for demanding industrial environments requiring dependable flow control with exceptional longevity and minimal maintenance requirements.
* BLOW - OUT PROOF STEM
* FACE TO FACE : DIN 3202 S13
* WORKING PRESSURE (CWP) : DN8 ~ DN50 1000psi / DN65 ~ DN100 800psi
* TEMPERATURE RANGE : -20 to 180。C
* LOCKING DEVIC
* This type of ball valves are designed as per the industrial standards and are also durable as well as precise.
* The three piece ball valves are corrosion resistant and easily affordable.
1.Size:1/4"~4"
2.Material: SS304 / WCB / SS316
3.CLASS:1,000 psi
4.Three connections avaiable: screwed end, butt weld end and socket end Face-to-face standard of DIN 3203-M3 standard / TS-3148 is available Locking device is optional
material 316 computer mechanical and precisioned dewaxing casting
